Description
This resource consists of rendering exercises and activities. No preparation needed other than to print at the desired paper size. This teaching resource has been developed for students studying Technical drawing, Graphics lessons or Technology Mandatory classes. It consists of a range of drawings which can be provided to students at a variety of levels at the teachers discretion.
The resource includes engineering objects that provide opportunities for students to extend their knowledge and skills in Orthogonal drawing practice.
Some drawings will require some teacher instruction and guidance prior to students attempting the drawings.
Many of the drawings can be used as cover lessons when the usual teacher is not available for the class.

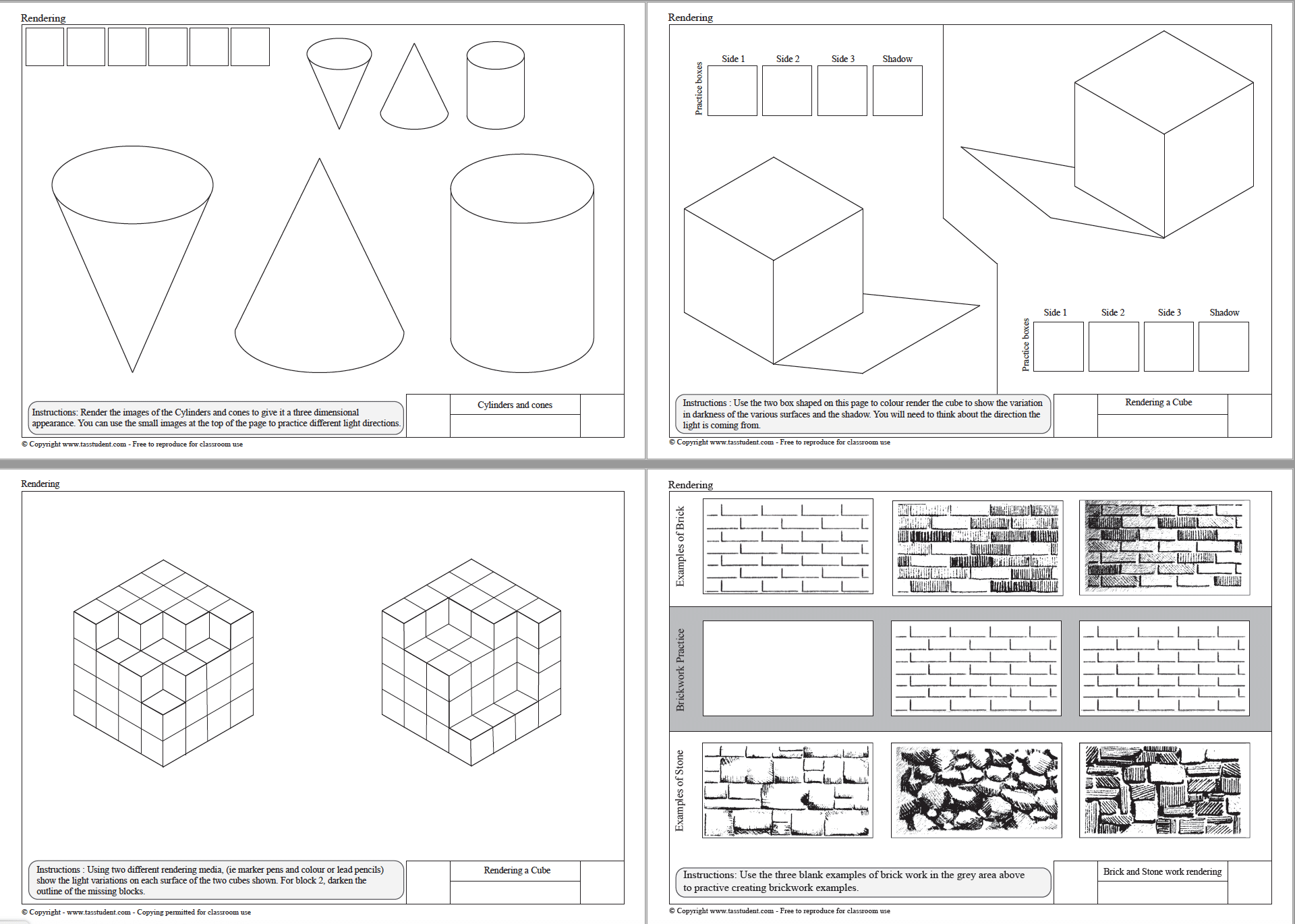

Sheets included in this resource are listed below.
1. Glossary of terms
2. Practice 1
3. Cylinders and cones
4. Cube 1
5. Cube 2
6. Brick and stone work
7. C Clamp
8. Sliding block
9. Engine mount
10. Pipe support
11. Shaft bracket
12. Torch
13. VW Beetle
14. Rendering a car
15. House 1
16. House 2
17. House 3
