Technical Drawing and Graphics – Set 6 “Oblique Drawing”

Sold By : Tasstudent

$5.50 GST inclusive

Units Sold: 0

This teaching resource has been developed for students studying Technical drawing or graphics lessons. It consists of a range of Oblique projection drawings which can be provided to students at a variety of levels at the teachers discretion.




-
+

SKU: 19RDGTTDAGS6OD
Digital or Physical

,

Formats Included

Year Level

,

Resource Type

Tags: , ,

Description

This teaching resource has been developed for students studying Technical drawing or graphics lessons. It consists of a range of drawings which can be provided to students at a variety of levels at the teachers discretion.

The resource includes engineering objects that provide opportunities for students to extend their knowledge and skills in Oblique drawing practice.

Some drawings will require some teacher instruction and guidance prior to students attempting the drawings.

Many of the drawings can be used as cover lessons when the usual teacher is not available for the class.

Sheets included in this resource are listed below.

1. Glossary of terms
2. Corner stop
3. C Clamp
4. Double step
5. Step Block 1 (sample solution)

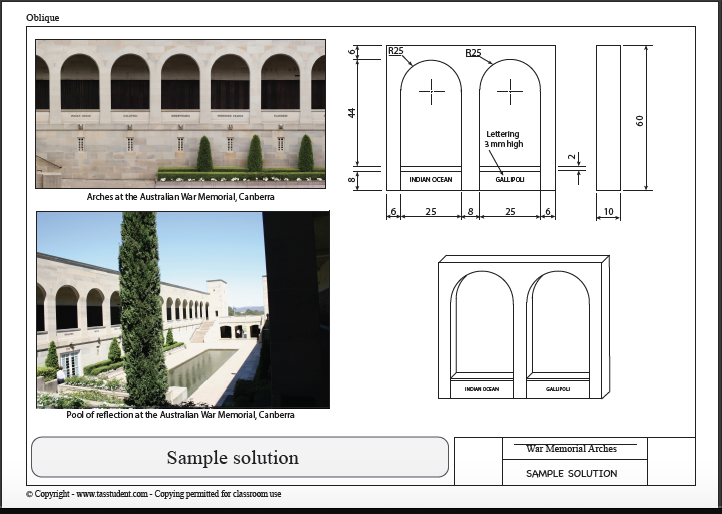

6. War Memorial Arches (sample solution)
7. Screen Wall Block (sample solution)
8. Various Exercises
